HP Consumer Desktop PCs - Updating the BIOS (Basic Input Output System) (Windows)

Download and install updates to the computer BIOS. This process is also known as 'flashing the BIOS'. Updating the BIOS is recommended as standard maintenance of the computer. It can also help to improve computer performance, provide support for hardware components or Windows upgrades, or install specific BIOS updates.

CAUTION:

Only install BIOS updates from HP. Installing the BIOS incorrectly can prevent the computer from starting or being recovered. If your computer is managed by an IT service, contact them for the correct update process.

For business computers such as ProBook, EliteBook, and ZBook models, your company IT department or local IT service might manage BIOS settings. Confirm that the updated BIOS version is compatible with your company's deployment environment.

Update the PC with HP Support Assistant

Use HP Support Assistant to find and install updates, including BIOS updates, for your computer with Windows.

  1. In Windows, search for and open HP Support Assistant, or click the app icon in the taskbar.

    If the app is not installed on your computer, download the latest version from the HP Support Assistant website.

  2. On the My Dashboard tab, find your computer, and then click Updates.

  3. Wait while HP Support Assistant analyzes the system.

  4. After the analysis completes, select the listed updates, download and install the updates, and then follow any on-screen instructions.

  5. If prompted, restart the computer, and then close the tool.

Update the BIOS manually from within Windows

You can manually install a BIOS update when Windows opens and you have internet access.

Gathering the required information about your computer BIOS

To find the correct BIOS update, get the computer product name and number, the motherboard or system board ID (referred to as the 'ROM Family SSID' in the BIOS update name), the BIOS version, and the processor name.

  1. Press and hold the ctrl and alt keys, and then press the s key to open the HP System Information utility.

    HP System Information window

  2. Write down the Product name, Product number, Motherboard ID, BIOS version, and Processor name.

Prepare your computer for the BIOS update

To prevent possible problems, close any open applications, and temporarily disable antivirus software and BitLocker before updating the BIOS.

  1. Close any open applications.

  2. Temporarily disable your antivirus software. In Windows, search for and open Security and Maintenance settings, and then click Security to access virus protection settings.

  3. Temporarily disable BitLocker drive encryption. In Windows, search for and open Manage Bitlocker. Click Suspend protection, and then click Yes. Be prepared and have the BitLocker recovery key available.

    CAUTION:

    If BitLocker is not disabled, the next time you restart the computer the BitLocker key might not be recognized. If you do not know the BitLocker recovery key, you might lose data or need to reinstall Windows.

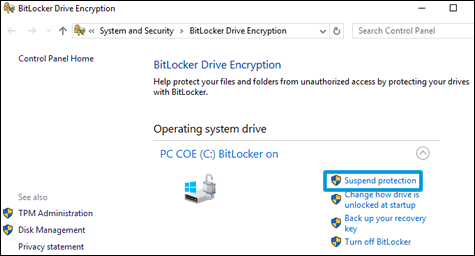

    Suspending BitLocker protection

Install the BIOS update

Download and install a BIOS update from the HP website.

  1. Go to the HP Software and Driver Downloads page.

  2. Navigate to the product page for your computer.

  3. Select BIOS from the list that displays, and then review any available BIOS updates.

    CAUTION:

    Read the Details section to confirm that the BIOS update is more recent then the one installed and that it applies to your computer. Installing the wrong BIOS could cause your computer to stop working.

    • If you do not see a BIOS update listed for your computer, no update is currently available.

    • If there are multiple BIOS updates available, identify the motherboard installed on your computer using the information from the System Information utility.

    • If you find a BIOS update, click Download. If HP Download and Install Assistant displays, select Download only, and then click Next. Click Save to save the BIOS update file on your computer.

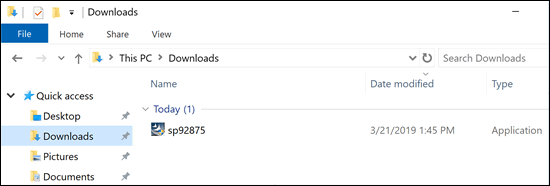

  4. Browse to the folder or desktop where you saved the downloaded BIOS update file, and then double-click the file name (example: sp12345) to start the installation.

    Wait for the computer to install the update. The computer might beep, turn off and on the display or cooling fans, or display a blinking power light. This is normal.

    CAUTION:

    Do not turn off or restart the computer until the update process completes.

    Location of saved BIOS update on computer

  5. Click Yes on the User Account Control screen.

    Clicking Yes to allow the update to install

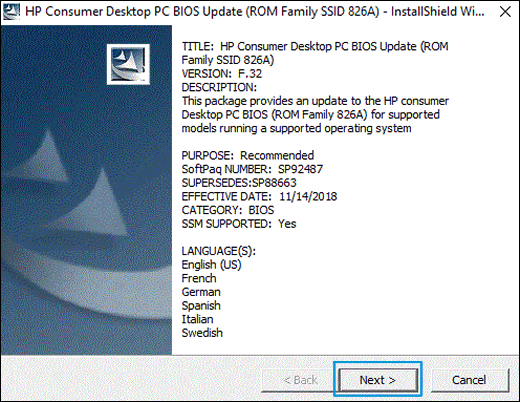

  6. On the InstallShield Wizard window, click Next.

    Clicking Next in the InstallShield Wizard

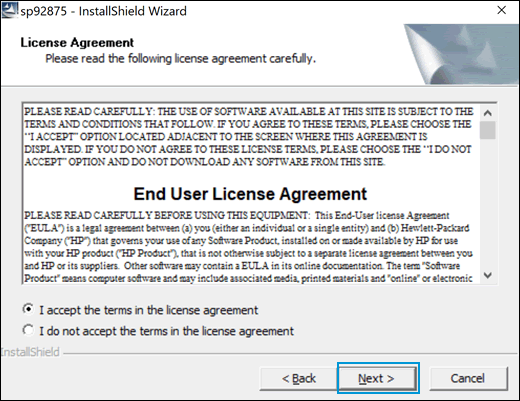

  7. Select I accept the terms in the license agreement, and then click Next.

    Agreeing to End User License Agreement

  8. If a Location to Save Files window displays, click Next.

  9. On the HP BIOS Update and Recovery window, click Next.

    Note:

    Windows that display during the update process might vary depending on your computer.

    Clicking Next on HP BIOS Update and Recovery window

  10. Select Update, and then click Next to prepare the update.

    Selecting Update in HP BIOS Update and Recovery

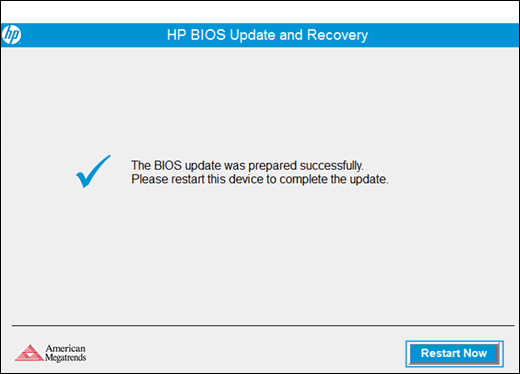

  11. Click Restart Now to install the update.

    Clicking Restart Now to install the update

  12. On the HP BIOS Update screen, click Apply Update Now, or wait for the update to start automatically.

    Clicking Apply Update Now

  13. Wait while the BIOS update installs. The computer displays the installation progress.

    Screen displaying progress of the BIOS update installation

  14. When prompted, click Continue Startup, or wait for the computer to restart automatically. It might take a few minutes for the computer to restart.

    Clicking Continue Startup

    Note:

    If the update fails, a failure screen displays with additional information. The system might run a BIOS recovery after restarting. Do not attempt to turn off the computer if this happens.

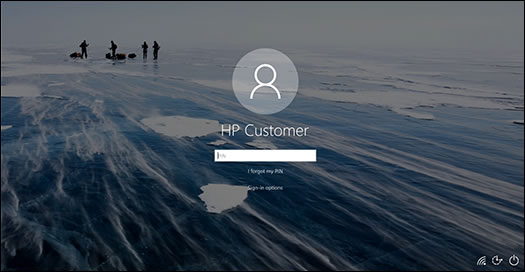

  15. When the lock screen displays, sign in to your computer.

    The lock screen displays after a successful BIOS update.

  16. If Bitlocker was suspended, search Windows for bitlocker, and then click Resume Protection.

  17. Re-enable your antivirus software.

Updating the BIOS manually from a USB Flash drive (outside of Windows)

If Windows does not open, use a second working computer with internet access to download the BIOS update. Copy the update file to a USB flash drive and install it on the original computer.

CAUTION:

If BitLocker protection is enabled on your computer, the BitLocker recovery key is required to start your computer after the BIOS update. Windows might need to be reinstalled if you do not have the key or the key is not recognized after the update.

Getting the computer BIOS information when Windows won't start

To find the correct BIOS update, obtain the computer product name, SKU number, system board ID, BIOS version/revision, and processor type.

  1. Turn on the original computer with the issue, and then immediately press the esc key repeatedly until the Startup Menu opens.

    Startup menu

  2. Press the f1 key to open System Information.

    System Information lists the product information.

  3. Write down the Product Name, SKU Number, System Board ID, BIOS Version/Revision, and Processor Type.

Set up the BIOS update on a USB flash drive

Use a second computer with internet access to create a BIOS recovery USB flash drive.

  1. Insert a blank USB flash drive into an available port on the second computer.

  2. Go to the HP Software and Driver Downloads page.

  3. Navigate to the product page for your computer.

  4. Select BIOS from the list that displays, and then review any available BIOS updates.

    CAUTION:

    Read the Details section to confirm that it applies to the computer. Installing the wrong BIOS could cause the computer to stop working.

    • If you do not see a BIOS update listed for your computer, no update is currently available.

    • If there are multiple BIOS updates available, identify the motherboard or system board installed on your computer using the information from the System Information utility.

    • If you find a BIOS update, click Download. If HP Download and Install Assistant displays, select Download only, and then click Next. Click Save to save the BIOS update file on your computer.

  5. Browse to the folder or desktop where you saved the downloaded BIOS update file, and then double-click the file name (example: sp12345) to start the installation.

    The computer might beep, turn off and on the display or cooling fans, or display a blinking power light. This is normal.

    CAUTION:

    Do not turn off or restart the computer until the update process completes.

    Opening the BIOS update file

  6. Click Yes on the User Account Control screen.

  7. On the InstallShield Wizard window, click Next.

  8. Select I accept the terms in the license agreement, and then click Next.

    Location of saved BIOS update on computer

  9. If a Location to Save Files window displays, click Next.

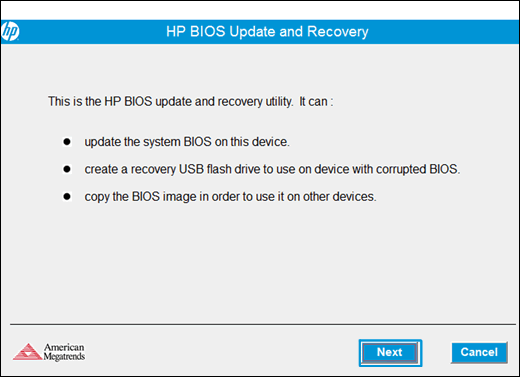

  10. In the HP BIOS Update and Recovery window, click Next.

    Note:

    Windows that display during the update process might vary depending on your computer.

    Clicking Next in HP BIOS Update and Recovery

  11. Select Create Recovery USB flash drive, and then click Next.

    Create Recovery USB flash drive in HP System BIOS Update Utility

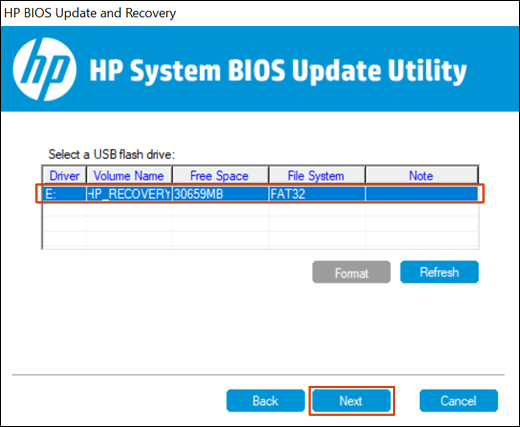

  12. Select your USB flash drive, and then click Next.

    Selecting the USB flash drive

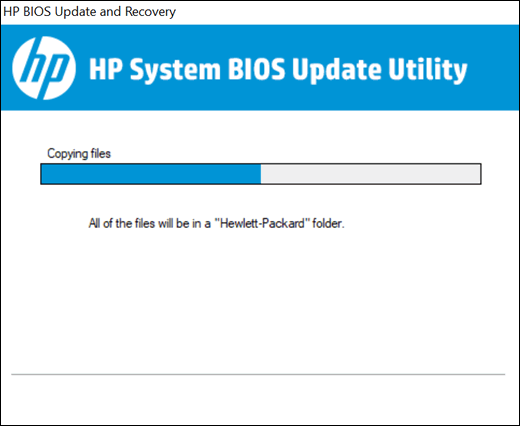

  13. Wait while the BIOS files copy to the USB flash drive.

    Copying BIOS files to the USB flash drive

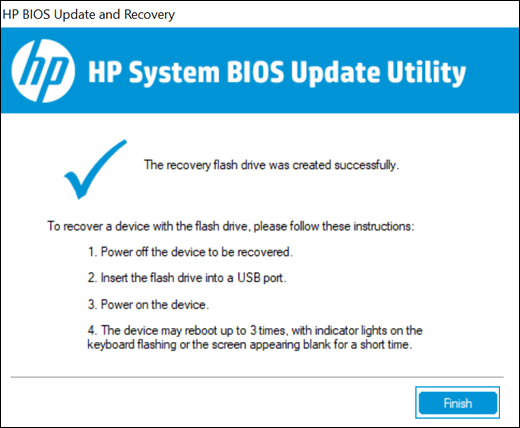

  14. When the message The recovery flash drive was created successfully displays, click Finish.

    Clicking Finish

  15. If necessary, click Cancel to close the update utility.

    Clicking Cancel to close the update utility

  16. Remove the flash drive from the computer.

Update the BIOS with a USB flash drive

Use the Hardware Diagnostics UEFI on the original computer to update the BIOS.

  1. Turn on the original computer, and then immediately press the esc key repeatedly, about once every second, until the Startup Menu opens.

  2. Press the f2 key to open the HP PC Hardware Diagnostics UEFI menu.

    Pressing the f2 key on the Startup Menu

  3. Insert the USB flash drive that contains the BIOS update into an available USB port on the computer.

  4. If prompted, select your language.

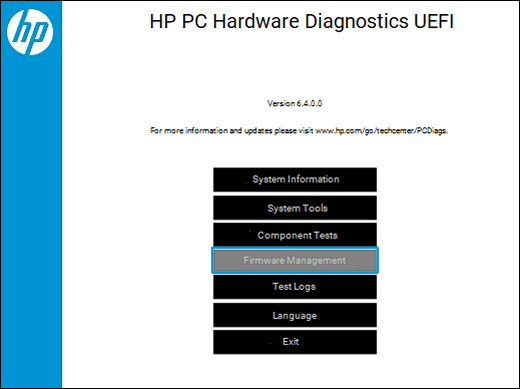

  5. Click Firmware Management or BIOS Management.

    Clicking Firmware Management

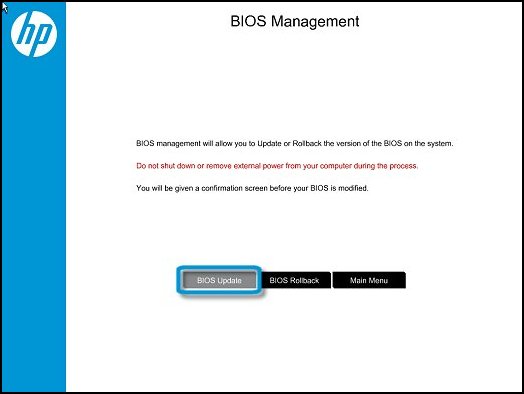

  6. Click BIOS Update.

    Click BIOS Update in the BIOS Management window

  7. Click Select BIOS Image to Apply.

    Select the BIOS Image to apply

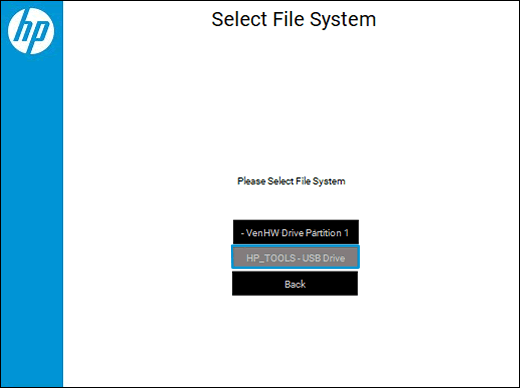

  8. Click HP_TOOLS-USB Drive.

    Clicking HP_TOOLS - USB Drive

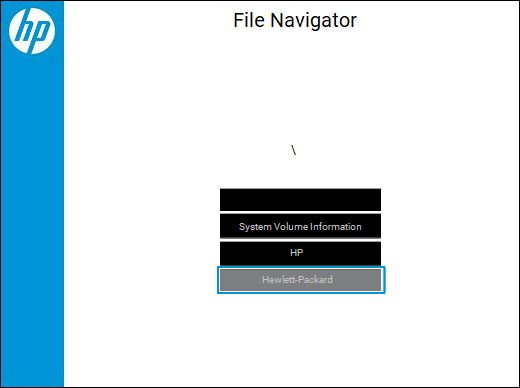

  9. Click Hewlett-Packard.

    Standard example of the File Navigator screen

    Clicking Hewlett-Packard

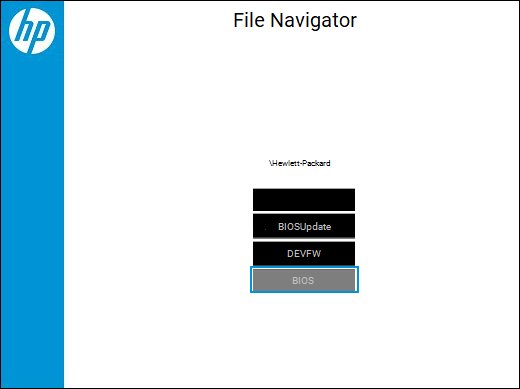

  10. Click BIOS.

    Clicking BIOS

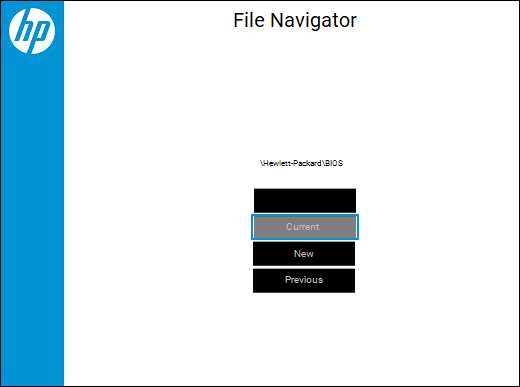

  11. Click Current.

    Clicking Current

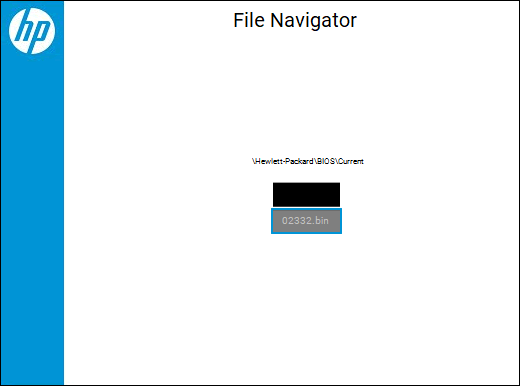

  12. Select the BIOS update file that matches the System Board ID. The ID has a "0" before the board ID (example: 02291.bin).

    BIOS update file selection

  13. Click Apply Update Now. Type the administrator password if prompted.

    Clicking Apply Update Now

  14. Wait while the BIOS update installs. The computer displays the installation progress.

    CAUTION:

    Do not shut down or restart the computer until the update process completes.

    Screen displaying progress of the BIOS update installation

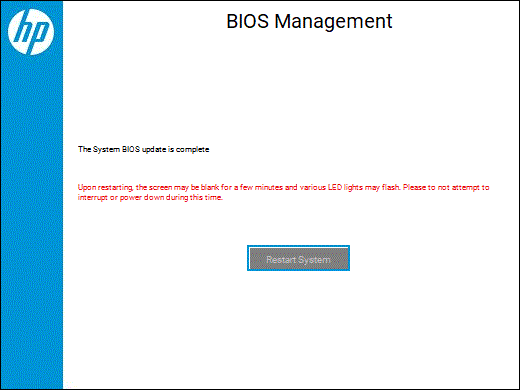

  15. When prompted, click Restart System, or wait for the computer to restart automatically. It might take a few minutes for the computer to restart.

    Note:

    If the update fails, a failure screen displays with additional information. The system might run a BIOS recovery after restarting. Do not attempt to turn off the computer if this happens.

    Clicking Restart System

  16. When the lock screen displays, sign in to your computer.

    The lock screen displays after a successful BIOS update.
